ASROCK N68C-S, AM2/AM3 , DDR2 OR DDR3, O/B VID+PCI-EXP, 5.1SND, 10/100 LAN, ATA-133+SATA2, 2YR M/WTY
1 year DCS warranty 2 year Manuf. warranty Download PDF Datasheet	NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.	£29.74 Ex VAT £35.69 inc VAT
DCS Part Number: 4711140870878

ASROCK N68C-S, AM2/AM3 , DDR2 OR DDR3, O/B VID+PCI-EXP, 5.1SND, 10/100 LAN, ATA-133+SATA2, 2YR M/WTY

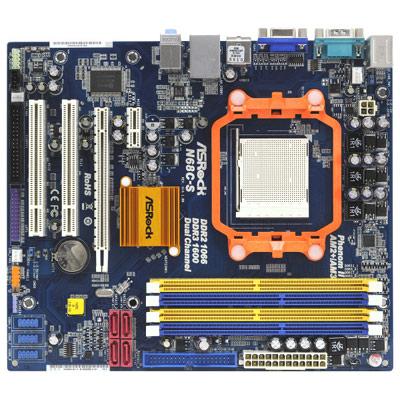

Click to enlarge

Model Number:N68C-S/M/ASR
Package Type:Retail
Warranty:2 Years Direct With Manufacturer
BIOS:AMI
Chipset:NVIDIA GeForce 7025 + nForce 630a
CPU Interface:Socket AM2+
Max. CPU Support:
- Sempron Dual Core 2200
- Sempron LE-1300
- Athlon 64 4000+
- Athlon 64 LE-1660
- Athlon 64 X2 6000+
- Athlon X2 7850
- Athlon II X2 255
- Athlon II X3 440
- Athlon II X4 635
- Phenom X3 8850
- Phenom X4 9850
- Phenom II X2 555
- Phenom II X3 740
- Phenom II X4 820
- Phenom II X4 945
Front Side Bus:2000MT/s
RAM Technology:
- DDR2 (Dual Channel)
- DDR3 (Dual Channel)
RAM Slots:
- 2 x 240-Pin (DDR2)
- 2 x 240-Pin (DDR3)
RAM Speeds:
- DDR2 533
- DDR2 667
- DDR2 800
- DDR2 1066 (AM2+/AM3 CPU only)
- DDR3 800
- DDR3 1066
- DDR3 1333
- DDR3 1600
Max. Memory Support:
- 8GB (DDR2)
- 8GB (DDR3)
Expansion Slots:
- 1 x PCI Express x16
- 1 x PCI Express x1
- 2 x 32-bit PCI
Storage Controller(s):
- 1 x P-ATA/133
- 4 x S-ATA/300
- RAID 0
- RAID 1
- RAID 0+1
- RAID 5
- JBOD
On-Board LAN:
- Realtek PHY RTL8201EL
- Speed: 10/100 Ethernet
On-Board Audio:5.1 CH HD Audio (Realtek ALC662 / VIA VT1705 Audio Codec)
On-Board Video:
- Integrated NVIDIA GeForce 7025
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
Back Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x COM
- 1 x VGA
- 4 x USB2.0
- 1 x LAN
- 3 x Audio
Internal I/O Connectors:
- 1 x 24-pin ATX Power
- 1 x 4 pin ATX 12V Power
- 1 x Print port header
- 1 x CD Audio
- Front panel audio connector
- 3 x USB2.0
Form Factor:
- Micro ATX
- 244mm x 208mm
Gross Weight (Kg):0.86Kg
Special Features:
- NVIDIA GeForce 7025 / nForce 630a
- Hyper Transport 2000 MT/s
- Supports ASRock Instant Boot
- Instant Flash
- Smart BIOS
- ASRock OC Tuner
- Intelligent Energy Saver
- OC DNA
Package Contents:
- Users Manual
- 2 x S-ATA Data Leads
- Driver CD

ASROCK AM2+ N68C-S S/V/L M-ATX 2000MT/S

This product was added to our catalog on Friday, 05 March 2010.
It was last modified on Wednesday, 08 February 2012.

PLEASE NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE - PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.
