DCS (Doncaster) Ltd. Online Store

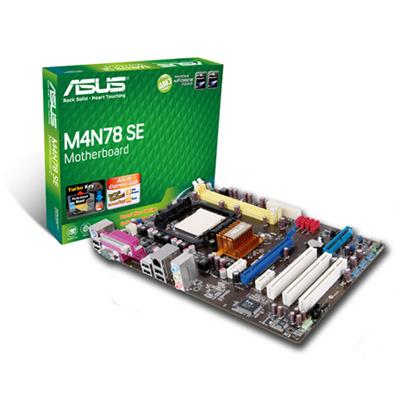

ASUS, M4N78 SE, AM3 RDY, ATA-133 + SATA2, " NO O/B VID " + PCI-EXP, 6CH AUDIO, GB LAN, 3YR M/WTY.
1 year DCS warranty 3 year Manuf. warranty Download PDF Datasheet	NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.	£42.55 Ex VAT £51.06 inc VAT
DCS Part Number: 4719543169254

ASUS, M4N78 SE, AM3 RDY, ATA-133 + SATA2, " NO O/B VID " + PCI-EXP, 6CH AUDIO, GB LAN, 3YR M/WTY.

Click to enlarge

Model Number:M4N78 SE ( May Vary )
Package Type:Retail Boxed
Warranty:3 Years Direct With Manufacturer
BIOS:AMI
Chipset:NVIDIA nForce 720D
CPU Interface:Socket AM2+
Max. CPU Support:
- Athlon 64 LE-1660+
- Athlon 64 X2 6500+
- Athlon II X2 250
- Athlon X2 4850e
- Athlon X2 5050e
- Athlon X2 7850+
- Athlon X2 BE-2400
- Phenom II X2 550
- Phenom II X3 740
- Phenom II X4 820
- Phenom II X4 955
- Phenom X3 8850
- Phenom X4 9950
- Sempron 2300+
- Sempron LE-1300
Front Side Bus:Up to 5200MT/s
RAM Technology:DDR2 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:
- DDR2 667
- DDR2 800
- DDR2 1066
Max. Memory Support:8GB
Expansion Slots:
- 1 x PCI Express x16
- 2 x PCI Express x1
- 3 x 32-bit PCI
Storage Controller(s):
- 1 x P-ATA/133
- 4 x S-ATA/300
- RAID 0
- RAID 1
- RAID 0+1
- RAID 5
- JBOD
On-Board LAN:NVIDIA nForce built-in Gigabit MAC with external Realtek8211CL-GR PHY
On-Board Audio:
- 6-channel
- ALC662
Back Panel I/O Ports:
- 1 x PS/2 Keyboard
- 6 x USB2.0
- 1 x COM
- 1 x Parallel
- 1 x LAN
- 3 x Audio
Internal I/O Connectors:
- 1 x 24-pin ATX Power
- 1 x 4 pin ATX 12V Power
- 3 x USB2.0
- 1 x SPDIF OUT
- 1 x Audio
- 1 x CD Audio
Form Factor:
- ATX
- 304mm x 193mm
Special Features:
- AMD AM2/AM2+/AM3 CPU Support
- NVIDIA nForce 720D
- Express Gate
- Turbo key
- EPU
- Support 45nm Phenom II CPU
Package Contents:
- Users Manual
- 1 x IDE Lead
- 1 x S-ATA Data Lead
- Backplate
- Driver CD

This product was added to our catalog on Wednesday, 01 April 2009.
It was last modified on Wednesday, 08 February 2012.

PLEASE NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE - PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.
