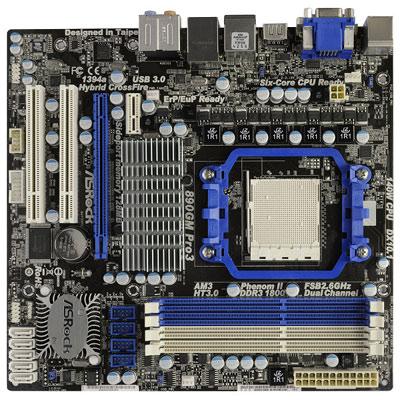

• Model Number:890GM PRO3 ( May Vary )
• Package Type: Retail Boxed
• Warranty: 2 Years Direct With Manufacturer
• BIOS: AMI
• Chipset: AMD 890GX + SB850
• CPU Interface: Socket AM3
• Max. CPU Support:
  • Sempron 145
  • Athlon II X2 260
  • Athlon II X3 445
  • Athlon II X4 640
  • Phenom II X2 555
  • Phenom II X3 740
  • Phenom II X4 820
  • Phenom II X4 965
  • Phenom II X6 1090T
• Front Side Bus:Up to 5200MT/s
• RAM Technology:DDR3 (Dual Channel)
• RAM Slots:4 x 240-Pin
• RAM Speeds:
  • DDR3 800
  • DDR3 1066
  • DDR3 1333
  • DDR3 1600 (O.C)
  • DDR3 1800 (O.C)
• Max. Memory Support:16GB
• Expansion Slots:
  • 1 x PCI Express 2.0 x16
  • 1 x PCI Express 2.0 x1
  • 2 x PCI
• Storage Controller(s):
  • 5 x S-ATA/600
  • RAID 0
  • RAID 1
  • RAID 0+1
  • RAID 5
  • JBOD
• On-Board LAN:
  • 1 x 10/100/1000
  • Realtek RTL8111E
• On-Board Audio:7.1 CH HD Audio with Content Protection
• On-Board Video: Integrated AMD Radeon HD 4290
• Back Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Optical S/PDIF Output
  • 5 x USB2.0
  • 1 x eS-ATA
  • 1 x USB3.0
  • 1 x LAN
  • 1 x IEEE1394
  • 5 x Audio
  • 1 x SPDIF Out
• Internal I/O Connectors:
  • 1 x 24-pin ATX Power
  • 1 x 4 pin ATX 12V Power
  • 1 x IR
  • 1 x COM
  • 1 x IEEE1394
  • Front panel audio connector
  • 4 x USB2.0
• Form Factor:
  • Micro ATX
  • 244mm x 229mm
• Gross Weight (Kg):1.20Kg
• Special Features:
  • ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
  • Supports CPU up to 140W
  • Supports ATI Hybrid CrossFireX
• Package Contents:
  • User Guide
  • 4 x S-ATA Data Leads
  • BackPlate
  • Driver CD
