ASROCK G31M-GS R2.0, O/B VID+PCI-EXP, 5.1 SND, GB LAN, SATA2+ATA-100, 2YR MAN WTY.
1 year DCS warranty 2 year Manuf. warranty Download PDF Datasheet	NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.	£30.42 Ex VAT £36.50 inc VAT
DCS Part Number: 4711140874982

ASROCK G31M-GS R2.0, O/B VID+PCI-EXP, 5.1 SND, GB LAN, SATA2+ATA-100, 2YR MAN WTY.

Click to enlarge

Model Number:G31M-GS R2.0
Package Type: Retail
Warranty:2 Years Direct With Manufacturer
BIOS: AMI
Chipset: Intel G31 + ICH7
CPU Interface: Socket 775
Max. CPU Support:
- Celeron Dual Core E1600
- Pentium Dual Core E6300
- Pentium D 960
- Core 2 Duo E4700
- Core 2 Duo E6850
- Core 2 Duo E7600
- Core 2 Duo E8600
- Core 2 Quad Q6700
- Core 2 Quad Q8400
- Core 2 Quad Q8400
- Core 2 Extreme QX9650
- Core 2 Extreme X6800
Front Side Bus:
- 800MHz
- 1066MHz
- 1333MHz
- 1600MHz (O.C)
RAM Technology:DDR2 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:
- DDR2 667
- DDR2 800
Max. Memory Support:8GB
Expansion Slots:
- 1 x PCI Express x16
- 1 x PCI Express x1
- 2 x 32-bit PCI
Storage Controller(s):
- 1 x P-ATA/100
- 4 x S-ATA/300
On-Board LAN:
- 1 x 10/100/1000
- Realtek RTL8111DL
On-Board Audio:5.1 CH Windows Vista Premium Level HD Audio (Realtek ALC662 Audio Codec)
On-Board Video:Intel Graphics Media Accelerator 3100
Back Panel I/O Ports:
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 1 x COM
- 1 x VGA
- 4 x USB2.0
- 1 x LAN
- 3 x Audio
Internal I/O Connectors:
- 1 x 24-pin ATX Power
- 1 x 4 pin ATX 12V Power
- 1 x Parallel
- Front panel audio connector
- 2 x USB2.0
Form Factor:
- Micro ATX
- 244mm x 183mm
Gross Weight (Kg):0.86Kg
Special Features:
- Supports CPU up to 105W
- Supports ASRock Instant Boot, Instant Flash, Smart BIOS, OC Tuner, Intelligent Energy Saver
- EuP Ready (EuP ready power supply is required)
Package Contents:
- Quick Installation Guide
- 1 x IDE Lead
- 1 x S-ATA Data Lead
- Backplate
- Driver CD

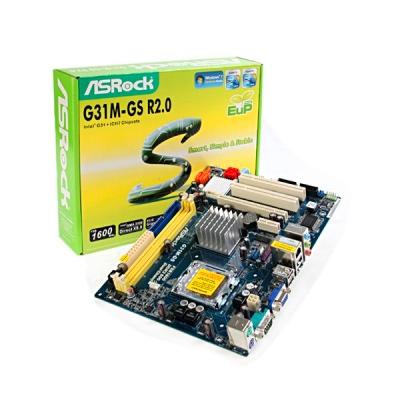

ASROCK 775 G31M-GS R2.0 M-ATX 1333FSB

This product was added to our catalog on Friday, 05 March 2010.
It was last modified on Wednesday, 08 February 2012.

PLEASE NOTE - IMAGES MAY NOT EXACTLY MATCH PRODUCT. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE - PLEASE CHECK COMPATIBILTY OF ITEM BEFORE PURCHASE.
